CB-25

The filter radial wedge pleat ensures that the greatest media area is exposed to the air flow to promote uniform dust loading. An incremental structure of frame retardant synthetic fiber filter media, confirming to European DIN53438 is glued with fine Aluminum mesh to give maximum grid throughout. Finally housed in a water proofing cardboard frame.

Pre V2

Heavy duty industrial grade synthetic media encased in Galvanized steel frame and reinforced by aluminum expanded metal on air exit side a W shaped rod on air entry side for easy media change over. Also available with a rod type construction frame.

GFM-200

The GFM-200 is a filter media composed of finest glass fibers. Thanks to its progressive structure, which means that the density of the fiber is increasing towards the clean air side, the depth effect and the high dust holding capacity are guaranteed. For the special application, systems with an extremely high temperature, a particular bonding agent is applied.

HT-300

Our HT-300 high temperature oven filters uses glass fiber media bonded together into a uniform high efficiency mat. The media pack is encased in a metallic housing for high temperature applications. The filter layer of this special media on the air exit side ensures that fibers do not migrate into the air stream. The clean air side is identify by a mark on the filter frame. Our HT-300 is an ideal choice in drying oven for automotive industry.

LHT-300

Our high temp oven filters, LHT-300 series uses a special glass fiber media supported by a high temp glass fiber cloth & wire mesh on both sides. The pleated media pack is encased in a fine galvanized metal housing for high temperature applications.

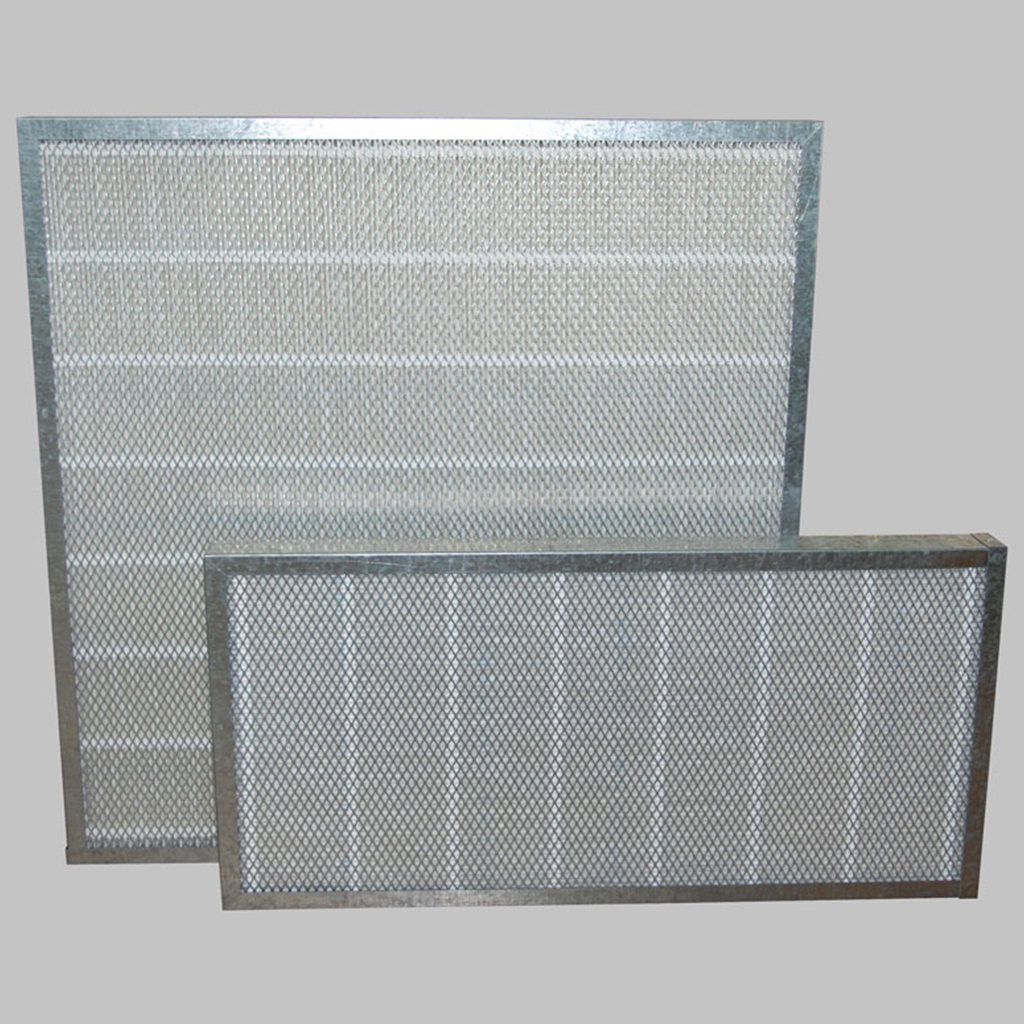

MPHT Ashrae

AFi's MPHT Ashrae high-temperature filters are used for air filtration Usage Zone involving temperatures up to 350 Deg C & peaks up to 455 Deg C. The silicone - free filter media are made of special, temperature-resistant glass fiber paper with high mechanical stability and moisture resistance. Mini pleat design separators maintain the pleat distance. Protection grids on both upstream and downstream side also prevent damage to the filter medium. The protection grids and the filter frame consist of galvanized steel, to reduce the risk of particle shedding caused by the constantly high temperatures. AFi's high-temperature Ashrae filters are equipped with a temperature-resistant gasket to preclude leaks.

Carbon Filter Media (Powder Activated)

Our ACF-420-NW-P filter media consist of a non-woven material base to which powdered activated carbon or another adsorber media are firmly fixed using a special spray coat method. ACF-420-NW-P are piece goods available in a wide variety of widths. ACF-420-NW-P filter media may vary as regards the type of non-woven material and activated carbon or adsorber performance. The active surface remains almost completely preserved thanks to the only punctual fixing of the activated carbon or adsorber, and the gases to be eliminated can be adsorbed or chemically bonded freely and adequately inside the activated carbon or the adsorber. If required, the activated carbon or the adsorber layer can also be combined or covered with a non-woven material, which then provides a mechanical protection or a particle separation function. The surface medium can be folded in additional production steps and customized into filter units.

Carbon Filter Media (Granule Activated)

Fabrics with granular activated carbon bonded to non-woven material, our ACF-300-NW-G filter media consist of a non-woven material base to which granular activated carbon or another adsorber media are firmly fixed using a special spray coat method. ACF-300-NW-G are piece goods available in a wide variety of widths. ACF-300-NW-G filter media may vary as regards the type of non-woven material and activated carbon or adsorber performance. The active surface remains almost completely preserved thanks to the only punctual fixing of the activated carbon or adsorber, and the gases to be eliminated can be adsorbed or chemically bonded freely and adequately inside the activated carbon or the adsorber. If required, the activated carbon or the adsorber layer can also be combined or covered with a non-woven material, which then provides a mechanical protection or a particle separation function. The surface medium can be folded in additional production steps and customised into filter units.

Metallic Wire Mesh Filters

We are offering a range of Wire Mesh Filters, which is widely known for its high quality and authentic made. The range is available in a varied of metals like Galvanized, Aluminum & Stainless Steel. Our range of Stainless Steel Wire Mesh Filters are used in a variety of Usage Zone. We offer customized designs of the range that are in different sizes in single or multiple layers. Furthermore, the available weaving methods are twill, plain, or plain Dutch and twill Dutch.
