HD Series

Filter made out of imported non woven media of 150g supported by 1 layer of coarse woven mesh on air entry side and 1 layer of heavy duty aluminium expanded mesh on air exit side, finally housed in a galvanized / Aluminum frame, flange or box type. All four sides are potted with a special PU resin with sponge effect. 100% media is machine pleated to face the max air flow turbulence during operations.

CB-25

The filter radial wedge pleat ensures that the greatest media area is exposed to the air flow to promote uniform dust loading. An incremental structure of frame retardant synthetic fiber filter media, confirming to European DIN53438 is glued with fine Aluminum mesh to give maximum grid throughout. Finally housed in a water proofing cardboard frame.

Pre V2

Heavy duty industrial grade synthetic media encased in Galvanized steel frame and reinforced by aluminum expanded metal on air exit side a W shaped rod on air entry side for easy media change over. Also available with a rod type construction frame.

SF Series

Filter made out of imported non woven compressed felt of 250 grams supported by 1 layer of fine woven mesh on air entry side and 1 layer of heavy duty aluminium mesh on air exit side, finally housed in a galvanized / Aluminum frame, flange or box type. All four sides are potted with a special PU resin with sponge effect. 100% media is machine pleated to face the max air flow turbulence during operations.

ZFb Series- Welded

The ZFb series are rigid welded pocket filters consists of a series of synthetic media pocket built up in non woven layers to ensure mechanical filter cake build up & eliminate fiber shedding. The filter media is thermally bonded synthetic micro fibers that are extremely durable and totally resistant to damage caused by turbulent air or mishandling. Made from 100% branded polyester. Pockets are aerodynamically designed for full media utilization.

ZFc Series- Stitched

The ZFc series of pockets comes with a stitched / in-house welding technology and is a low cost pocket filter for less challenging Usage Zone. The filter incorporates high performance synthetic filter media featuring progressive density and high dust holding capacity. Apart from lower cost the ZFc series of pockets can be delivered in customized sizes and meets the clean ability requirement of many HVAC customers.

MB Series-Meltblown

The pockets are manufactured from 100% polypropylene fibers laid on a colored polypropylene carrier material. The unique weld pattern design ensures that pockets inflate easily without touching adjacent pockets giving evenly distributed air flow & high dust holding capacity. Pockets are ready for assembly into bag filters with no cutting or stitching required.

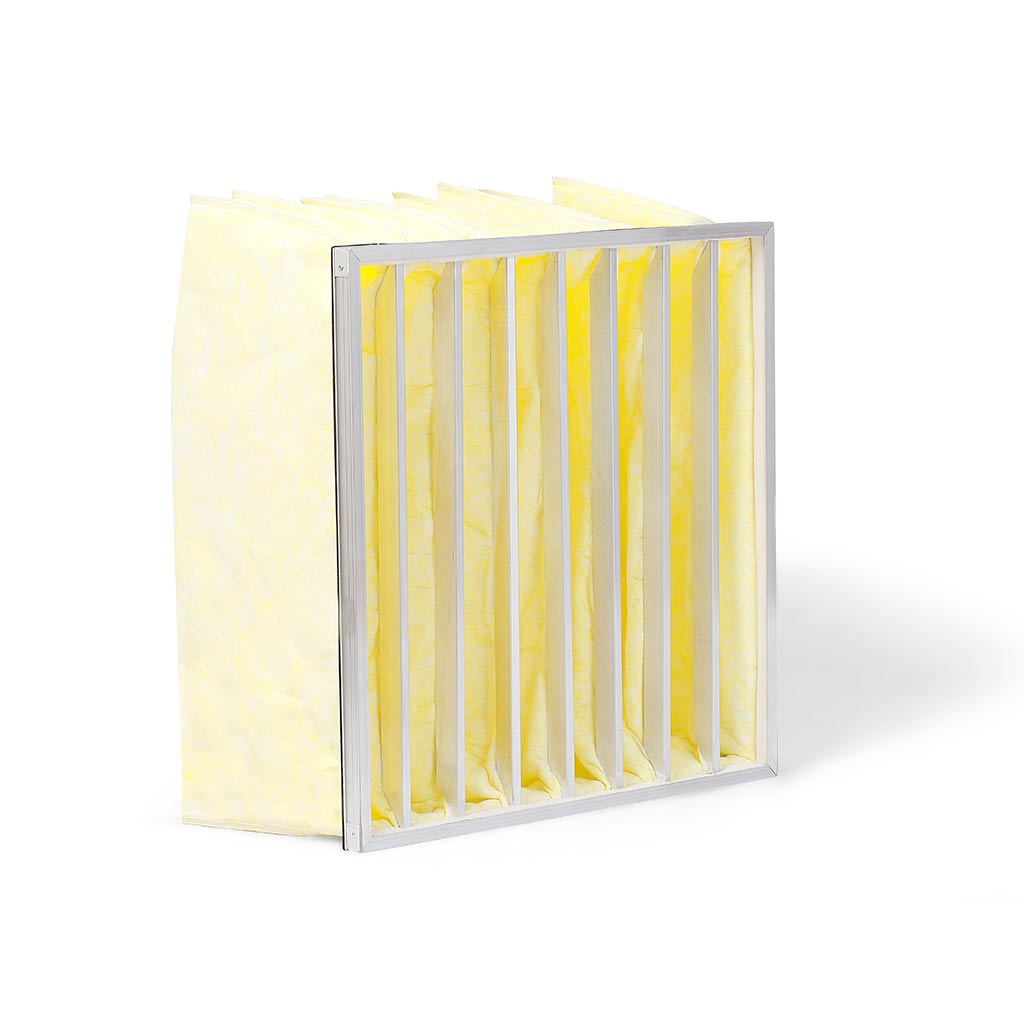

FG Series- Fibreglass

The pockets are manufactured from 100% polypropylene fibers laid on a colored polypropylene carrier material. The unique weld pattern design ensures that pockets inflate easily without touching adjacent pockets giving evenly distributed air flow & high dust holding capacity. Pockets are ready for assembly into bag filters with no cutting or stitching required.

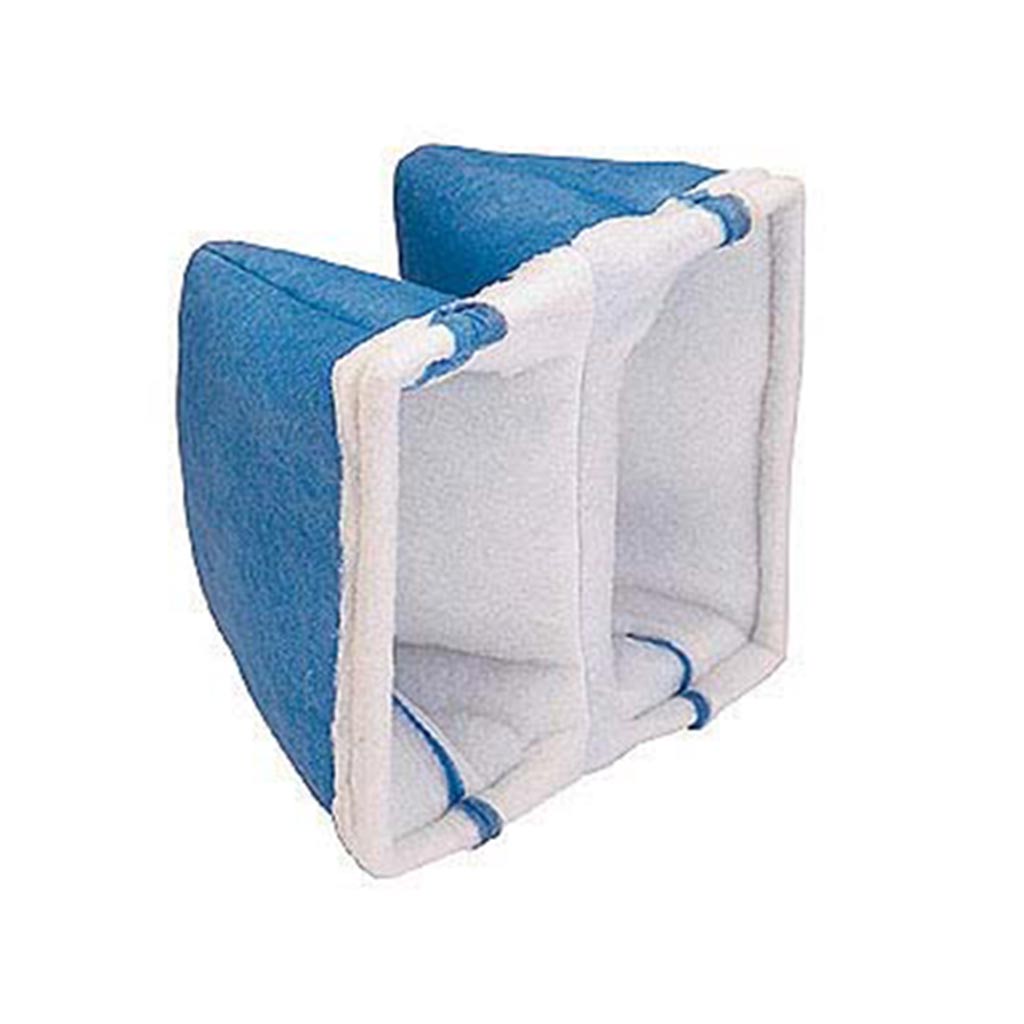

Pocket Cubes

AFi Pocket Cubes are made with a two-stage 100% non-woven polyester media. The seams of all AFi Cubes are sewn together for maximum durability. The Internal Supported Cubes use a heavy-duty internal wire frame for added rigidity. The back panels of the Unitized Cubes are fastened in the center for better airflow and media utilization. Our Pocket Cubes offers medium efficiency in a wide range of applications. The rigid, self-seal design of these filters helps prevent air bypass and allows the filters to operate under adverse conditions, especially where high humidity is present. The open fibers on the intake layer catch the larger particles allowing the finer particles to be caught by the dense outflow layer. The AFi Pocket Cubes are less restrictive to airflow and performs well in moderate dust loading applications. Filters perform well in both variable and constant volume systems

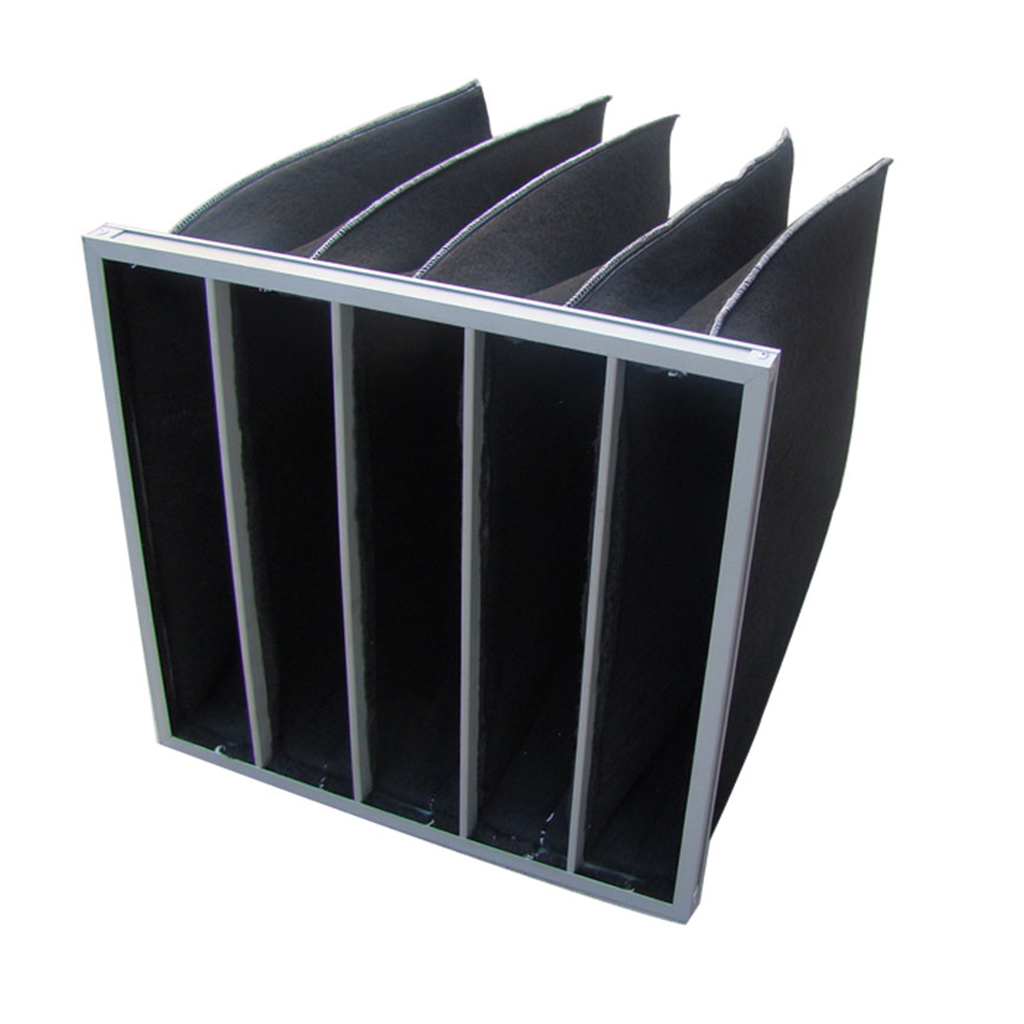

ACF SERIES

ACF Series Carbon Pocket Filters are made from a filter media impregnated with activated carbon and offer a very low level of grease and odour control for kitchen extracts. Our Carbon Pocket Filter is made with a special carbon impregnated media is sewn into pockets and mounted onto a metal frame & fit into duct work in Kitchen Extract Systems to capture grease and odours/smells given off by cooking. They should be changed regularly to make sure you have good clean and safe ventilation in the kitchen.

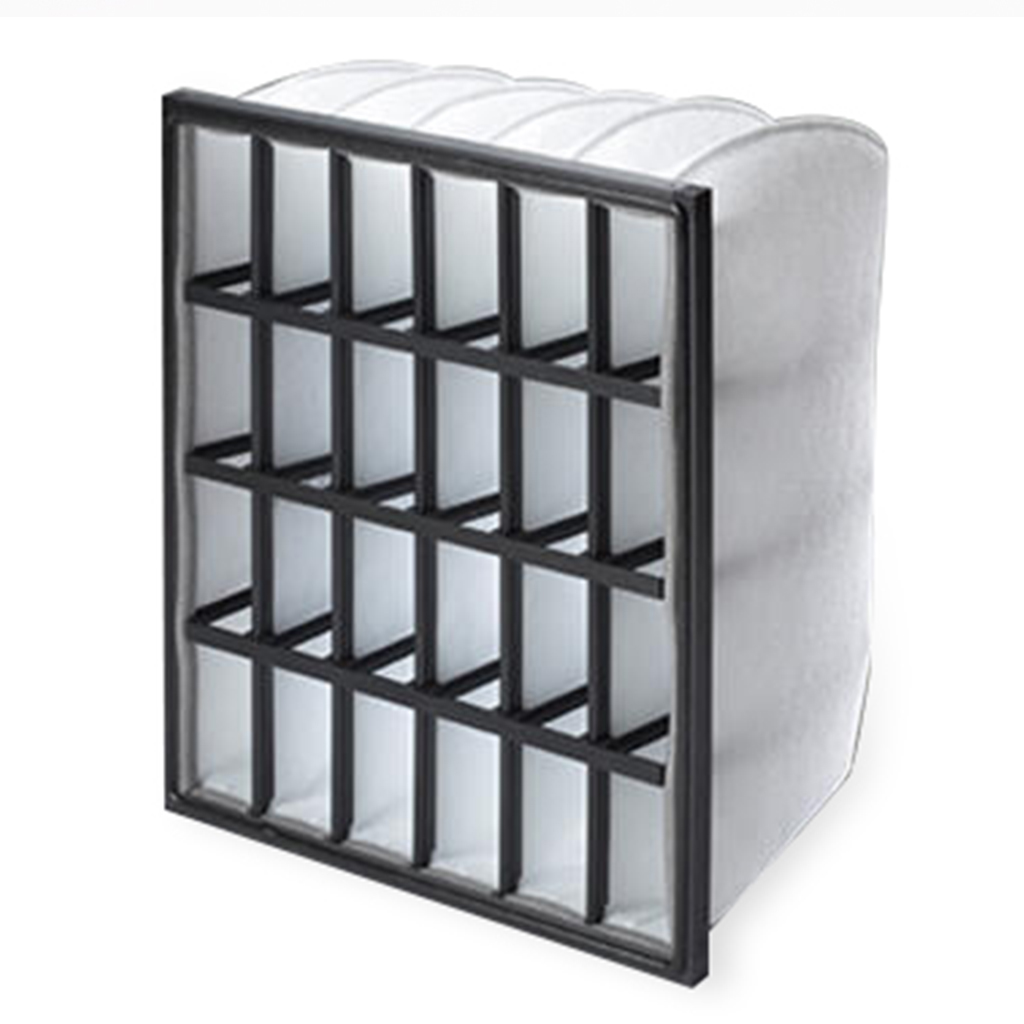

MPR REVERSE SERIES

MPR pocket filters are unique premium coalesce pre-filters in reverse air flow direction. The MPR pocket filters serve as efficient pre or final filters in air intake systems of Gas turbines in any environmental condition (including off-shore, marine) and in any climate (including tropical). They efficiently remove air borne particulate matter but also snow, mist and fog acting as a filter and a coalescer in one. MPR filters are specially designed for the elimination of free water and air borne salt crystals. Where subsequent final filters are placed, they protect them not only from coarse dust but also from running in wet conditions. The MPR filters do significantly prolong the filter life time of the final filter and also increase their operational safety.

Metallic Wire Mesh Filters

We are offering a range of Wire Mesh Filters, which is widely known for its high quality and authentic made. The range is available in a varied of metals like Galvanized, Aluminum & Stainless Steel. Our range of Stainless Steel Wire Mesh Filters are used in a variety of Usage Zone. We offer customized designs of the range that are in different sizes in single or multiple layers. Furthermore, the available weaving methods are twill, plain, or plain Dutch and twill Dutch.
